PMWEX30
XDCAM EX Memory Recorder

$4,950.00 U.S. List Price
Have Sony Contact You

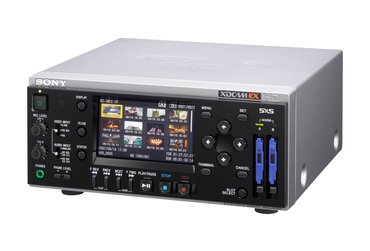

More images:

The PMW-EX30 deck is a highly versatile and affordable compact recording deck, and can be used for many different applications. It allows simple viewing of recorded materials with a monitor, dubbing to other format/media such as HDV™, XDCAM HD and HDCAM™, and feeding to nonlinear editing systems. In addition, the PMW-EX30 deck can be used as an affordable full HD recorder for event recordings – it can record HD signal outputs from a switcher. The PMW-EX30 deck is equipped with a wide array of interfaces including HD-SDI input and output, HDMI output, HD analog component, composite outputs and more. Equipped with two SxS PRO memory card slots, the PMW-EX30 deck can record up to 140 minutes of HD footage using two 16-GB SxS PRO memory cards (in SP mode). The recording time can be further extended up to approximately 260 minutes when an optional PHU-60K professional hard disk unit is attached to the PMW-EX30 deck.

Highlights:

  • 2 Express Card Slots
  • HD SDI input and output
  • Downconverted DV out for DV NLE editing
Features Benefits:
Highly compact design - can be placed either horizontally or vertically
MPEG HD recording and playback at 35 and 25 Mb/s
Equipped with two SxS PRO memory card slots
Built-in 3.5-inch* LCD monitor *(Viewable area measured diagonally)
Comprehensive range of HD interfaces - HD-SDI input/output, i.LINK (HDV) input/output and component output
Down-converted SD outputs for migration to SD environments - SD-SDI, i.LINK (DVCAM), component, S-Video and composite
HDMI output for digital connection to a range of consumer displays
Adjustable audio input volume (CH1 and CH2)

General Specifications Detail:
Mass 2.0 kg (4 lb 6 oz)
Dimensions (W x H x D) (Excluding Protrusions) 210 x 88 x 200 mm (8 3/8 x 3 1/2 x 7 7/8 inches)
Power Requirements DC 12 V
Power Consumption Approx. 12 W
Operating Temperature +5 to +40°C (+32 to +104°F)
Storage Temperature -20 to +60°C (-4 to +140°F)
Recording Format Video:
MPEG-2 Long GOP
HQ mode: VBR, maximum bit rate: 35 Mb/s, MPEG-2 MP@HL
SP mode: CBR, 25 Mb/s, MPEG-2 MP@H14

Audio:
Linear PCM (2ch, 16-bit, 48-kHz)
Playback Format MPEG HD: 1080/59.94i, 50i, 29.97P, 25P, 23.98P
MPEG HD: 720/59.94P, 50P, 29.97P, 25P, 23.98P
Recording Frame Rate NTSC setting:
HQ mode: 1920 x 1080/59.94i, 29.97P*, 23.98P*, 1280 x 720/59.94P
SP mode: 1440 x 1080/59.94i

PAL setting:
HQ mode: 1920 x 1080/50i, 25P*, 1280 x 720/50P
SP mode: 1440 x 1080/50i
*Early PMW-EX30 requires an upgrade to achieve these capabilities.
Recording/Playback Time HQ mode:
Approx. 100 min. with SBP-32 (32 GB) memory card
Approx. 50 min. with SBP-16 (16 GB) memory card
Approx. 25 min. with SBP-8 (8 GB) memory card

SP mode:
Approx. 140 min. with SBP-32 (32 GB) memory card
Approx. 70 min. with SBP-16 (16 GB) memory card
Approx. 35 min. with SBP-8 (8 GB) memory card

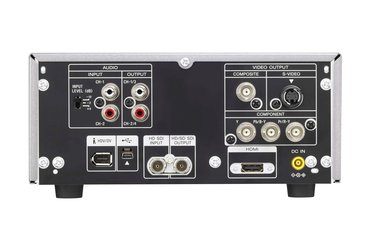

Inputs/Outputs Specifications Detail:
Composite Ouput BNC (x 1), NTSC or PAL
S-Video Output Mini-DIN 4pin (x 1)
Component Output BNC (x 3)
Analog Audio Input RCA (CH-1,CH-2)
Analog Audio Output RCA (CH-1,CH-2)
SDI Input BNC (x 1), HD only
SDI Output BNC (x 1), HD/SD selectable
HDMI Type A 19-pin (x 1), output
i.LINK IEEE1394, 6pin (x 1), HDV stream input/output, DVCAM stream output, S400
USB USB device, Mini-B (x 1)
Headphone Output Stereo mini jack (x 1)
DC Input (12 V) DC jack (12 V)

Built-In Display Specifications Detail:
Built-In Display 3.5-inch** type color LCD monitor, approx. 921000 effective pixels, 640 (H) x 3 (RGB) x 480 (V), 16:9, hybrid type

**Viewable area measured diagonally.

Media Specifications Detail:
Type ExpressCard/34 slot x 2
